The dye removes (absorbs) the light in visible region, and allows the light in infrared region to pass. The dye paste can be easily mixed with epoxy resin for LED and infrared detector. There are 4 grades which have different wavelength range to absorb the light.
Visble Light Cut Dye Resin for LED
Characteristics
The dye removes (absorbs) the light in visible region, and allows the light in infrared region to pass. The dye paste can be easily mixed with epoxy resin for LED and infrared detector. There are 4 grades which have different wavelength range to absorb the light.
| Product Name | XS-45M | XS-85-1 | XS-83 | XS-01 |
| Cut Wavelength(nm) | 840 | 760 | 730 | 700 |
| Infrared region transmittance (%) | 90 | 90 | 80-90 | 80-90 |
| Usage | photodetector, Ir DA, interrupter and other infrared elements of 940nm, 880nm | photodetector, IrDA, interrupter and other infrared elements of 880nm, 850nm | ||
How to use
＊Add necessary quantity of visible light cut dye paste into resin for LED, and mix with hardener well.
＊The necessary quantity of cut dye is varied with the type of LED and detectors. The addition amount makes change the transmittance of infrared region and absorption of visible light.

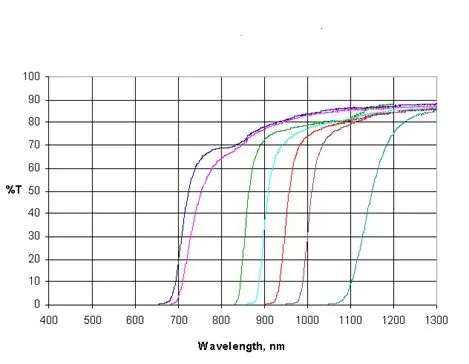

Decide the proper mixing ratio of cut dye by preliminerty test by reference to the attached transmittance chart by mixing ratio.

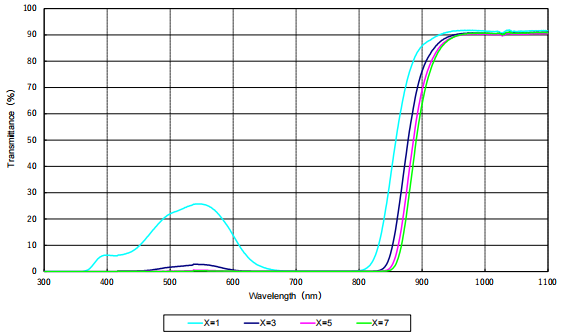

Different dosage Transmittance spectrum
Packaging and Handling
Packaging: 500g/Drum
Store the product in a cool, dry, well-ventilated area away from incompatible materials. Unless stated, proper storage will permit usage of the product for 12 months from the manufacture date. For additional handling and toxicological information, consult the Material Safety Data Sheet.
